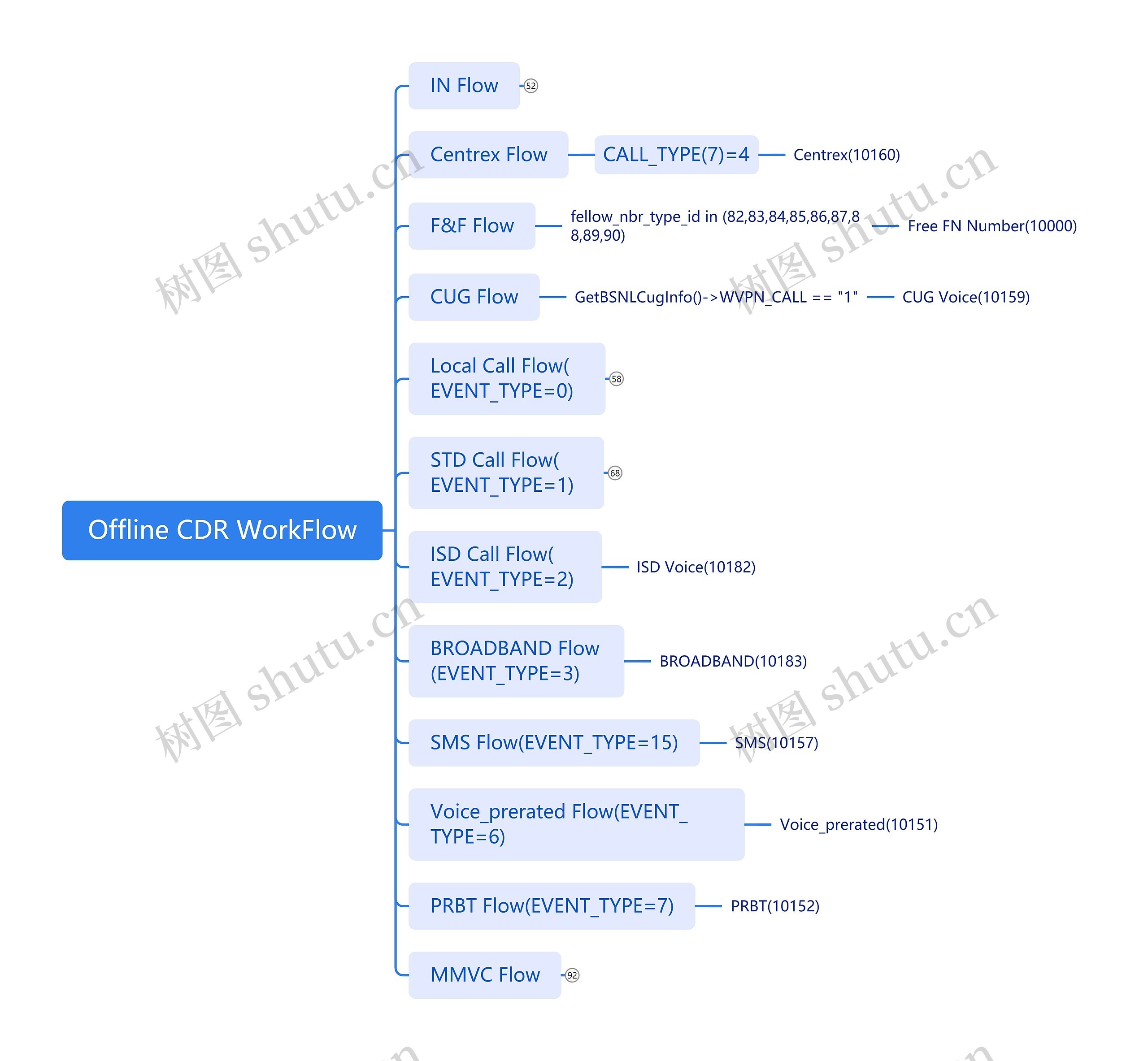

Offline CDR WorkFlow Offline CDR WorkFlow 离线CDR工作流
树图思维导图提供《Offline CDR WorkFlow》在线思维导图免费制作，点击“编辑”按钮，可对《Offline CDR WorkFlow》进行在线思维导图编辑，本思维导图属于思维导图模板主题，文件编号是：377f78fc19111d7fdde832d872b531d6
思维导图大纲
相关思维导图模版
Offline CDR WorkFlow思维导图模板大纲
IN Flow
1710=3
订购了WDC_133753
IN_Free(10248)
IN_VPN(10203)
订购了WDC_133753
DPP IN (121805,121810)
IN_Free(10248)
GetServTypeByProdId=908
IN_VPN(10203)
订购了WDC_133726|WDC_133725|WDC_133724
Toll Free Call Normal Fee(10287)
CALLING_NBR in ZONE['1361:GSM_MSC_STATE_LIST'] 或者CALLING_NBR号段的nbr_segment_band_id=75
IN Cellular Details
CALLING_STD_CODE与CALLED_STD_CODE所在zone(zone_map=612)的remark相等
GSM_IN_Within_LSA(10255)
CALLING_NBR所在zone(zone_map=614)的remark与CALLED_STD_CODE所在zone(zone_map=612)的remark相等
GSM_IN_Within_LSA(10255)
CALLING_STD_CODE所在zone(zone_map=612)的remark与CALLED_NBR所在zone(zone_map=613)的remark相等且CALLED_NBR在ZONE STD_CIRCLE_DCA_LIST(1360)中
GSM_IN_Within_LSA(10255)
CALLING_STD_CODE所在zone(zone_map=612)的remark与CALLED_NBR所在zone(zone_map=614)的remark相等且CALLED_NBR在ZONE GSM_MSC_STATE_LIST(1361)中
GSM_IN_Within_LSA(10255)
CALLING_STD_CODE与CALLED_STD_CODE所在zone(zone_map=612)的remark不相等
GSM_IN_Outside_LSA(10256)
CALLING_NBR所在zone(zone_map=614)的remark与CALLED_STD_CODE所在zone(zone_map=612)的remark不相等
GSM_IN_Outside_LSA(10256)
CALLING_STD_CODE所在zone(zone_map=612)的remark与CALLED_NBR所在zone(zone_map=613)的remark不相等且CALLED_NBR在ZONE STD_CIRCLE_DCA_LIST(1360)中
GSM_IN_Outside_LSA(10256)
CALLING_STD_CODE所在zone(zone_map=612)的remark与CALLED_NBR所在zone(zone_map=614)的remark不相等且CALLED_NBR在ZONE GSM_MSC_STATE_LIST(1361)中
GSM_IN_Outside_LSA(10256)
CALLING_NBR所在zone(zone_map=614)的remark与CALLED_NBR所在zone(zone_map=613)的remark相等且CALLED_NBR在ZONE STD_CIRCLE_DCA_LIST(1360)中
GSM_IN_Within_LSA(10255)
CALLING_NBR所在zone(zone_map=614)的remark与CALLED_NBR所在zone(zone_map=613)的remark不相等且CALLED_NBR在ZONE STD_CIRCLE_DCA_LIST(1360)中
GSM_IN_Outside_LSA(10256)
CALLING_NBR所在zone(zone_map=614)的remark与CALLED_NBR所在zone(zone_map=614)的remark相等且CALLED_NBR在ZONE GSM_MSC_STATE_LIST(1361)中
GSM_IN_Within_LSA(10255)
CALLING_NBR所在zone(zone_map=614)的remark与CALLED_NBR所在zone(zone_map=614)的remark不相等且CALLED_NBR在ZONE GSM_MSC_STATE_LIST(1361)中
GSM_IN_Outside_LSA(10256)
CALLING_NBR in ZONE['1360:STD_CIRCLE_DCA_LIST']
IN Landline Details
CALLING_NBR和CALLED_NBR的STD_CODE相同且CALLING_NBR的号段=BSNL LandLine Number
LL_IN_Onnet(10250)
CALLING_NBR和CALLED_NBR的STD_CODE相同且CALLING_NBR的号段！=BSNL LandLine Number
LL_IN_Offnet(10251)
CALLING_NBR和CALLED_NBR的STD_CODE相同
LL_IN_Call(10249)
CALLING_NBR所在zone(zone_map=613)的remark与CALLED_NBR所在zone(zone_map=613)的remark相等且CALLED_NBR在ZONE STD_CIRCLE_DCA_LIST(1360)中
LL_IN_Intra_Circle(10252)
CALLING_NBR所在zone(zone_map=613)的remark与CALLED_NBR所在zone(zone_map=613)的remark不相等且CALLED_NBR在ZONE STD_CIRCLE_DCA_LIST(1360)中
LL_IN_Inter_Circle(10253)
CALLING_NBR所在zone(zone_map=613)的remark与CALLED_NBR所在zone(zone_map=614)的remark相等且CALLED_NBR在ZONE GSM_MSC_STATE_LIST(1361)中
LL_IN_Intra_Circle(10252)
CALLING_NBR所在zone(zone_map=613)的remark与CALLED_NBR所在zone(zone_map=614)的remark不相等且CALLED_NBR在ZONE GSM_MSC_STATE_LIST(1361)中
LL_IN_Inter_Circle(10253)
Centrex Flow
CALL_TYPE(7)=4
Centrex(10160)
F&F Flow
fellow_nbr_type_id in (82,83,84,85,86,87,88,89,90)
Free FN Number(10000)
CUG Flow
GetBSNLCugInfo()->WVPN_CALL == "1"
CUG Voice(10159)
Local Call Flow(EVENT_TYPE=0)
NBR_SEGMENT_BAND_ID=GetBandFromSegmentGroup(CALLED_NBR,18)
NBR_SEGMENT_BAND_ID=75
BSNL_BILLING_CALSS=2
Local Cellular To Onnet(10259)
BSNL_BILLING_CALSS=3
Local Cellular To Offnet(10258)
BSNL_BILLING_CALSS=4
Local Cellular To MTNL(10260)
NBR_SEGMENT_BAND_ID=5
BSNL_BILLING_CALSS=1
Special Number Band 9(10286)
NBR_SEGMENT_BAND_ID=869
BSNL_BILLING_CALSS=1
Special Number Band PRBT(10177)
NBR_SEGMENT_BAND_ID=16
BSNL_BILLING_CALSS=1
Special Number Band 8(10176)
NBR_SEGMENT_BAND_ID=15
BSNL_BILLING_CALSS=1
Special Number Band 7(10175)
NBR_SEGMENT_BAND_ID=14
BSNL_BILLING_CALSS=1
Special Number Band 6(10174)
NBR_SEGMENT_BAND_ID=203
BSNL_BILLING_CALSS=1
Special Number Band 10(10168)
NBR_SEGMENT_BAND_ID=12
BSNL_BILLING_CALSS=1
Special Number Band 5(10173)
NBR_SEGMENT_BAND_ID=11
BSNL_BILLING_CALSS=1
Special Number Band 4(10172)
NBR_SEGMENT_BAND_ID=10
BSNL_BILLING_CALSS=1
Special Number Band 3(10171)
NBR_SEGMENT_BAND_ID=13
BSNL_BILLING_CALSS=1
Special Number Band 2(10170)
NBR_SEGMENT_BAND_ID=850
BSNL_BILLING_CALSS=1
Special Number Band 11(10169)
NBR_SEGMENT_BAND_ID=4
BSNL_BILLING_CALSS=1
Special Number Band 1(10167)
NBR_SEGMENT_BAND_ID=74
BSNL_BILLING_CALSS=1
Local LL Other Operator(10165)
NBR_SEGMENT_BAND_ID=73
BSNL_BILLING_CALSS=1
Local LL BSNL(10160+4)
NBR_SEGMENT_BAND_ID=24
BSNL_BILLING_CALSS=1
Local DSPT - DSPT INTRA CIRCLE(10163)
NBR_SEGMENT_BAND_ID=860+4
FMC(10161)
NBR_SEGMENT_BAND_ID=GetBandFromSegmentGroupRef(CALLED_NBR,18)
NBR_SEGMENT_BAND_ID=111
Local Wings(10079)
STD Call Flow(EVENT_TYPE=1)
NBR_SEGMENT_BAND_ID=GetBandFromSegmentGroup(CALLED_NBR,19);CALLED_NBR_SEGMENT_NAME=GetSegmentNameFromGroup(CALLED_NBR,19)
NBR_SEGMENT_BAND_ID=85
BSNL_BILLING_CALSS=2
STD Cellular To Onnet(10262)
BSNL_BILLING_CALSS=3
STD Cellular To Offnet(10261)
BSNL_BILLING_CALSS=4
STD Cellular To MTNL(10263)
NBR_SEGMENT_BAND_ID=31
BSNL_BILLING_CALSS=1
STD Special Number Band(10181)
NBR_SEGMENT_BAND_ID=865
FMC_STD(10180)
NBR_SEGMENT_BAND_ID=GetBandFromSegmentGroupRef(CALLED_NBR,19)
NBR_SEGMENT_BAND_ID=112
BSNL_BILLING_CALSS=2
STD Wings(10201)
NBR_SEGMENT_BAND_ID=81
BSNL_BILLING_CALSS=1
STD Intra Circle LT50 Non BSNL(10200)
NBR_SEGMENT_BAND_ID=77
BSNL_BILLING_CALSS=1
STD Intra Circle LT50 BSNL(10199)
NBR_SEGMENT_BAND_ID=22
BSNL_BILLING_CALSS=1
STD Intra Circle LL-DSPT(10198)
NBR_SEGMENT_BAND_ID=82
BSNL_BILLING_CALSS=1
STD Intra Circle GT50 Non BSNL(10197)
NBR_SEGMENT_BAND_ID=78
BSNL_BILLING_CALSS=1
STD Intra Circle GT50 BSNL(10196)
NBR_SEGMENT_BAND_ID=83
BSNL_BILLING_CALSS=1
STD Inter Circle LT50 Non BSNL(10195)
NBR_SEGMENT_BAND_ID=79
BSNL_BILLING_CALSS=1
STD Inter Circle LT50 BSNL(10194)
NBR_SEGMENT_BAND_ID=23
BSNL_BILLING_CALSS=1
STD Inter Circle LL-DSPT(10193)
NBR_SEGMENT_BAND_ID=84
BSNL_BILLING_CALSS=1
STD Inter Circle GT50 Non BSNL(10192)
NBR_SEGMENT_BAND_ID=80
BSNL_BILLING_CALSS=1
STD Inter Circle GT50 BSNL(10191)
NBR_SEGMENT_BAND_ID=27
BSNL_BILLING_CALSS=1
NON BSNL LL INTRA CIRCLE(10190)
NBR_SEGMENT_BAND_ID=29
BSNL_BILLING_CALSS=1
NON BSNL LL INTER CIRCLE(10189)
NBR_SEGMENT_BAND_ID=25
BSNL_BILLING_CALSS=1
STD DSPT - DSPT INTER CIRCLE(10188)
NBR_SEGMENT_BAND_ID=26
BSNL_BILLING_CALSS=1
STD DSPT - BSNL LL INTRA CIRCLE(10187)
NBR_SEGMENT_BAND_ID=28
BSNL_BILLING_CALSS=1
STD DSPT - BSNL LL INTER CIRCLE(10186)
NBR_SEGMENT_BAND_ID=116
BSNL_BILLING_CALSS=1
Local Landline Other Operator(10185)
NBR_SEGMENT_BAND_ID=115
BSNL_BILLING_CALSS=1
Local Landline BSNL(10184)
ISD Call Flow(EVENT_TYPE=2)
ISD Voice(10182)
BROADBAND Flow(EVENT_TYPE=3)
BROADBAND(10183)
SMS Flow(EVENT_TYPE=15)
SMS(10157)
Voice_prerated Flow(EVENT_TYPE=6)
Voice_prerated(10151)
PRBT Flow(EVENT_TYPE=7)
PRBT(10152)
MMVC Flow
Video(EVENT_TYPE=12)
CALLED_NBR=CC
MMVC Video Cancellation(10216)
CALLED_NBR=MT
MMVC Video Meeting(10219)
CALLED_NBR=EX
MMVC Video Extension(10218)
CALLED_NBR=MO
MMVC Video Modification(10220)
CALLED_NBR=SC
MMVC Video Schedule(10225)
CALLED_NBR=DC
MMVC Video Data_Conference(10217)
CALLED_NBR=OD
MMVC Video Order(10221)
CALLED_NBR=QoS
MMVC Video QoS(10222)
CALLED_NBR=RD
MMVC Video Recording(10223)
CALLED_NBR=RL
MMVC Video Recording_Listen(10224)
CALLED_NBR=CS
MMVC Video Call Set(10215)
Audio_Data(EVENT_TYPE=13)
CALLED_NBR=CC
MMVC Audio_Data Cancellation(10227)
CALLED_NBR=OD
MMVC Audio_Data Order(10231)
CALLED_NBR=CS
MMVC Audio_Data Call Set(10226)
CALLED_NBR=MT
MMVC Audio_Data Meeting(10230)
CALLED_NBR=DC
MMVC Audio_Data Data_Conference(10228)
CALLED_NBR=SC
MMVC Audio_Data Schedule(10235)
CALLED_NBR=RD
MMVC Audio_Data Recording(10233)
CALLED_NBR=QoS
MMVC Audio_Data QoS(10232)
CALLED_NBR=MO
MMVC Audio_Data Modification(10236)
CALLED_NBR=EX
MMVC Audio_Data Extension(10229)
CALLED_NBR=RL
MMVC Audio_Data Recording_Listen(10234)
Video_Data(EVENT_TYPE=14)
CALLED_NBR=CC
MMVC Video_Data Cancellation(10238)
CALLED_NBR=OD
MMVC Video_Data Order(10243)
CALLED_NBR=CS
MMVC Video_Data Call Set(10237)
CALLED_NBR=MT
MMVC Video_Data Meeting(10241)
CALLED_NBR=DC
MMVC Video_Data Data_Conference(10239)
CALLED_NBR=SC
MMVC Video_Data Schedule(10247)
CALLED_NBR=RD
MMVC Video_Data Recording(10245)
CALLED_NBR=QoS
MMVC Video_Data QoS(10244)
CALLED_NBR=MO
MMVC Video_Data Modification(10242)
CALLED_NBR=EX
MMVC Video_Data Extension(10240)
CALLED_NBR=RL
MMVC Video_Data Recording_Listen(10246)
Audio(EVENT_TYPE=11)
CALLED_NBR=CC
MMVC Audio Cancellation(10205)
CALLED_NBR=RL
MMVC Audio Recording_Listen(10213)
CALLED_NBR=EX
MMVC Audio Extension(10207)
CALLED_NBR=MO
MMVC Audio Modification(10209)
CALLED_NBR=QoS
MMVC Audio QoS(10211)
CALLED_NBR=RD
MMVC Audio Recording(10212)
CALLED_NBR=SC
MMVC Audio Schedule(10214)
CALLED_NBR=DC
MMVC Audio Data_Conference(10206)
CALLED_NBR=MT
MMVC Audio Meeting(10208)
CALLED_NBR=CS
MMVC Audio Call Set(10204)
CALLED_NBR=OD
MMVC Audio Order(10210)
