用户传输装置

接收小程序命令

Fant8205C上传平台介绍

树图思维导图提供《Fant8205C上传平台》在线思维导图免费制作，点击“编辑”按钮，可对《Fant8205C上传平台》进行在线思维导图编辑，本思维导图属于思维导图模板主题，文件编号是：c8f09fdd58a0c7f32740ef7a3ff2ca48

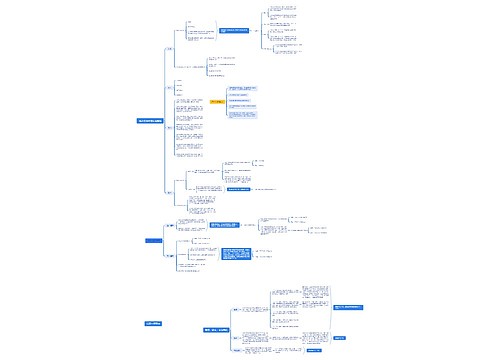

思维导图大纲

TCP接收

设备火警

命令 B

TCP

41 35 42 42 37 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 04 00 27 EE 50 01 96 8A 41 35 42 5A

josn

{ "SerialNumber": 55, "IMEI": "866769066819353", "Event": { "Address": [ 22081063 ], "Control_Cmd": 3, "Name": "火警", "Date_Time": "2023-01-12 11:27:17" }, "Rec_Len": 4, "Ip": "117.136.38.172:26965", "REC_Cmd": "b" }

加载设备

命令k

TCP

41 35 42 4B 0D 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 02 00 64 00 67 81 41 35 42 5A

平台应答主机

说明

注册至866769066819353 探测器总计21发送第1数据，主机类型1000 22071016(1,类型:声光,地址:1-1016) 22071017(2,类型:声光,地址:1-1017) 22071018(3,类型:声光,地址:1-1018) 22071019(4,类型:声光,地址:1-1019) 22071020(5,类型:感烟,地址:1-1020) 22071026(6,类型:声光,地址:1-1026) 22071027(7,类型:感烟,地址:1-1027) 22071029(8,类型:感烟,地址:1-1029) 22071031(9,类型:感烟,地址:1-1031) 22071032(10,类型:感烟,地址:1-1032) 22071033(11,类型:感烟,地址:1-1033) 22071034(12,类型:声光,地址:1-1034) 22071035(13,类型:感烟,地址:1-35) 22071036(14,类型:感烟,地址:1-1036) 22071037(15,类型:感烟,地址:1-1037) 22071038(16,类型:感烟,地址:1-1038) 22071039(17,类型:感烟,地址:1-1039) 22071044(18,类型:感烟,地址:1-1044) 22081052(19,类型:感烟,地址:1-52) 22081056(20,类型:液位,地址:1-1056) 22081063(21,类型:液位,地址:1-63) 探测器总计:21长度：183 】

TCP

41 35 43 4B 02 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 99 00 E8 03 15 00 01 00 E8 C6 50 01 2B 01 F8 E9 C6 50 01 2B 01 F9 EA C6 50 01 2B 01 FA EB C6 50 01 2B 01 FB EC C6 50 01 28 01 FC F2 C6 50 01 2B 01 02 F3 C6 50 01 28 01 03 F5 C6 50 01 28 01 05 F7 C6 50 01 28 01 07 F8 C6 50 01 28 01 08 F9 C6 50 01 28 01 09 FA C6 50 01 2B 01 0A FB C6 50 01 28 01 23 FC C6 50 01 28 01 0C FD C6 50 01 28 01 0D FE C6 50 01 28 01 0E FF C6 50 01 28 01 0F 04 C7 50 01 28 01 14 1C EE 50 01 28 01 34 20 EE 50 01 2D 01 20 27 EE 50 01 2D 01 3F 7C 1B 41 35 43 5A

json

{ "SerialNumber": 8, "IMEI": "866769066819353", "Rec_Len": 2, "Ip": "117.136.38.77:39703", "REC_Cmd": "k" }

FANT8205C心跳

命令X

TCP

41 35 42 58 D9 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 3A 00 38 39 38 36 30 30 32 31 30 31 32 32 46 30 33 31 30 39 34 39 00 00 32 00 4D 01 00 32 14 F4 C0 A8 02 63 C0 A8 02 01 1B 1E B0 CC 5E 01 B1 CC 5E 01 01 00 3B 3B 3B 3B 3B 3B 3B 3B 38 44 41 35 42 5A

应答

json

{ "SerialNumber": 10, "IMEI": "866769066819296", "GateWay_Hart": { "MyUUID": 23990301, "CCID": "898604B3192280246704", "CESQ": 19, "Type": 77, "Modbus_Addr": 1, "Ip": "192.168.2.163", "Port": 7713, "Dns": "192.168.2.1", "Trans": 0, "CANkbps": 20, "UUID": 23990302, "Version": "0.0.3.2", "MyPoint24": 0, "MainElectError": false, "BatElectError": false }, "Rec_Len": 58, "Ip": "39.144.16.49:40645", "REC_Cmd": "X" }

注册生产设备

命令Y

TCP

41 35 42 59 36 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 0E 00 FB C6 50 01 2B 1F D3 0A 00 00 AA 55 AA 55 98 D8 41 35 42 5A

41 35 42 4B 2C 01 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 02 00 F4 01 28 46 41 35 42 5A

Json

{ "SerialNumber": 54, "IMEI": "866769066819353", "Sensor_Hart": { "Address": 22071035, "Device_State": 0, "Device_Type": 43, "Device_BatV": 31, "Device_RSSI": 211, "Device_SNR": 10, "Device_Analog": 0, "Date_Time": "2023-01-10 18:24:03" }, "Rec_Len": 14, "Ip": "118.190.79.184:52993", "REC_Cmd": "y" }

{ "SerialNumber": 14, "IMEI": "866769066819353", "Sensor_Hart": { "Address": 22081063, "Device_State": 0, "Device_Type": 45, "Device_BatV": 31, "Device_RSSI": 0, "Device_SNR": 0, "Device_Analog": 0, "Date_Time": "2023-01-12 09:24:40" }, "Rec_Len": 14, "Ip": "117.136.38.172:25978", "REC_Cmd": "y" }

反馈恢复

命令G

TCP

41 35 42 47 27 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 04 00 27 EE 50 01 5A C3 41 35 42 5A

JSON

{ "SerialNumber": 39, "IMEI": "866769066819353", "Event": { "Address": [ 22081063 ], "Control_Cmd": 28, "Name": "反馈恢复", "Date_Time": "2023-01-12 10:41:31" }, "Rec_Len": 4, "Ip": "117.136.38.172:26934", "REC_Cmd": "g" }

手动测试

命令I

TCP

41 35 42 49 23 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 14 00 27 EE 50 01 27 EE 50 01 27 EE 50 01 27 EE 50 01 27 EE 50 01 2F 63 41 35 42 5A

Json

{ "SerialNumber": 35, "IMEI": "866769066819353", "Event": { "Address": [ 22081063, 22081063, 22081063, 22081063, 22081063 ], "Control_Cmd": 123, "Name": "手动测试", "Date_Time": "2023-01-12 12:34:25" }, "Rec_Len": 20, "Ip": "223.104.3.244:63269", "REC_Cmd": "i" }

TCP发送

开机加载

命令K

TCP

启动

命令M

设备M

JSON

{ "POST_Time": 1673570997, "Sign": "a1b9887c16872050eea272eb1b684924", "IMEI": 22081056, "Cmd": "A5CM" }

http://nb.bjfant.com:11018/Api/8205C/Cmd

3008

{ "POST_Time": "1676947223", "Sign": "5ff735a9cedf9fa815a62acdd01e3884", "IMEI": "22081056", "Oper": "Fant 3008", "Cmd": "A5CM" }

http://nb.bjfant.com:11018/Api/8205C/Cmd

主机

停止

命令N

主机

JSON

设备

json

{ "POST_Time": 1676941938, "Sign": "cc37c5645949a40145c79c0b432f6cec", "IMEI": 22081056, "Cmd": "A5CN" }

http://nb.bjfant.com:11018/Api/8205C/Cmd

接收小程序命令

http://nb.bjfant.com:11018/Api/8205C/Cmd

网关

全部启动（M）

{ "POST_Time": 1673678149, "Sign": "cd4334ef123eda87d2e3e25ee0936ed4", "IMEI": "866769066819353", "Cmd": "A5CM" }

应答平台

TCP

41 35 43 4E 02 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 18 00 EC C6 50 01 EE C6 50 01 F1 C6 50 01 1C EE 50 01 20 EE 50 01 27 EE 50 01 C1 1C 41 35 43 5A

说明

停止至866769066819353 22071020(1,类型:感烟,地址:0-255) 22071022(2,类型:感烟,地址:0-255) 22071025(3,类型:感烟,地址:0-255) 22081052(4,类型:感烟,地址:0-255) 22081056(5,类型:液位,地址:0-255) 22081063(6,类型:感烟,地址:0-255) 探测器总计:6探测器总计:6长度：54 】

全部启动（M）

{ "POST_Time": 1673574587, "Sign": "5b8744f2358be7782ce7e7a03bc342d0", "IMEI": "866769066819353", "Cmd": "A5CN" }

应答平台

TCP

41 35 43 4E 02 00 38 36 36 37 36 39 30 36 36 38 31 39 33 35 33 00 18 00 EC C6 50 01 EE C6 50 01 F1 C6 50 01 1C EE 50 01 20 EE 50 01 27 EE 50 01 C1 1C 41 35 43 5A

说明

添加网关到数据库

call fant_8205c.Proc__SAVEJSON_GateWay(' { "SerialNumber": 5, "IMEI": "866769066818777", "Rec_Len": 4, "Ip": "117.136.0.218:39571", "REC_Cmd": "T" } ');

41 35 42 54 14 00 38 36 36 37 36 39 30 36 36 38 31 38 37 37 37 00 04 00 F1 0E 6E 01 35 78 41 35 42 5A
